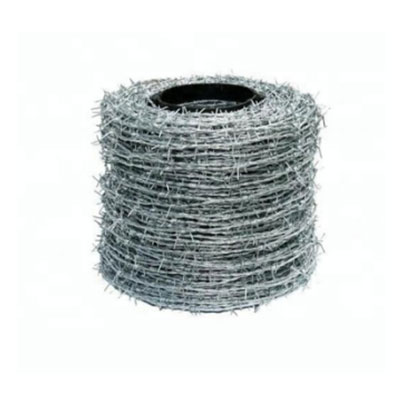

Barbed wire
Introduction: barbed wire is made by fully automated barbed wire machine through twisting the wire.
Material: high quality low carbon steel wire (galvanized, plastic coated, sprayed) PVC, with blue, green, yellow and other colour.
Application: used for isolation and protection of grassland, borders, railways, highways, prisions.
Characteristics:anti-corrosion,anti-ageing,solarization resistance,durable,etc.
| Barbed Wire | ||||
| TYPE | WIRE GAUGE(SWG) | BARBED DISTANCE （CM） |
BARBED LENGTH”(CM) | |
| Electric Galvanized Barbed Wire; Hot-dipped Zinc Plating Barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||

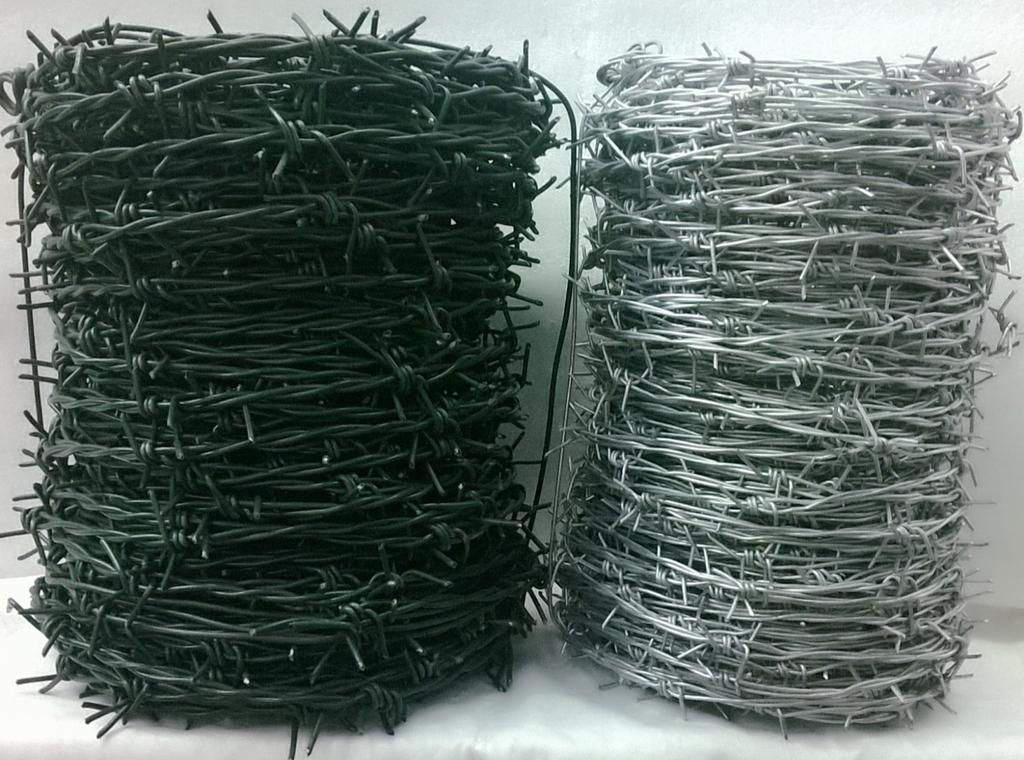

| PVC Coated Barbed Wire; PE Barbed Wir | Before Coating | After
Coating |
7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC PE coating thickness: 0.4mm-0.6mm; Different colors or length are available at customer request. | ||||

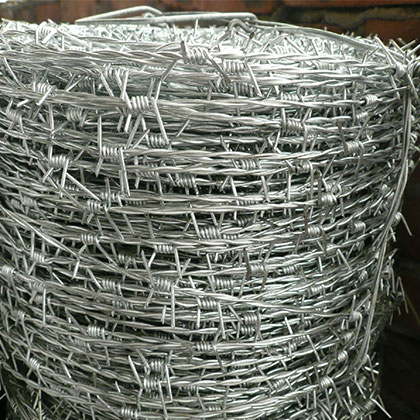

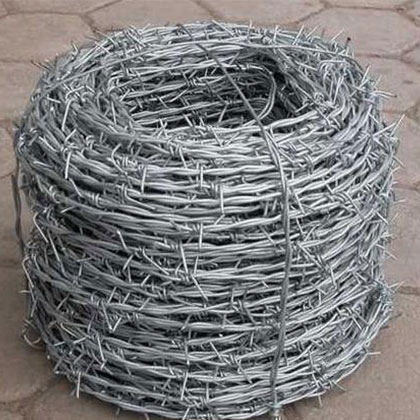

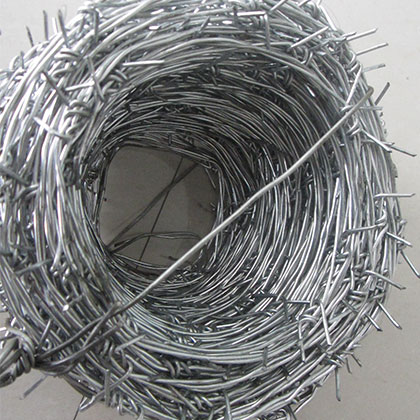

Barbed wire details:
Wire diameter: 1.8mm, 2mm, 2.5mm. Line wire has single wire and double wire. Generally spealing, the wire diameter of line wire is
thicker than that of barb wire.
Twist type: positive and negtive twist, positive twist, traditional twist.
Barb space: 12cm(5 inch), 8cm(3 inch), 10cm(4 inch),13cm, 15cm
Coil weight: 25kg/coil, 18kg/coil
Barbed wire application:
Barbed wire is mainly used in protecting of grass boundary, railway, highway, nation defence,airport,orchard,etc. It has a
excellent protective performance,beautiful appearance,various patterns.
