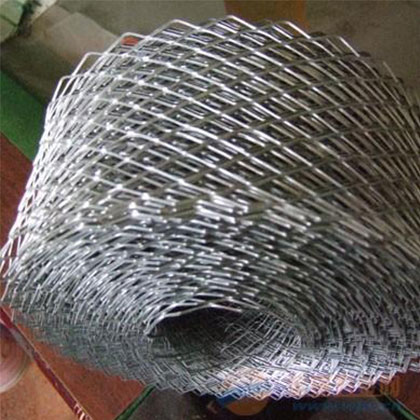

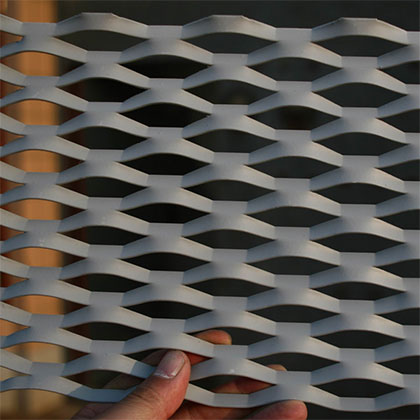

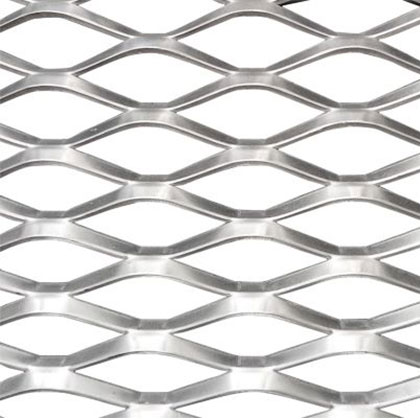

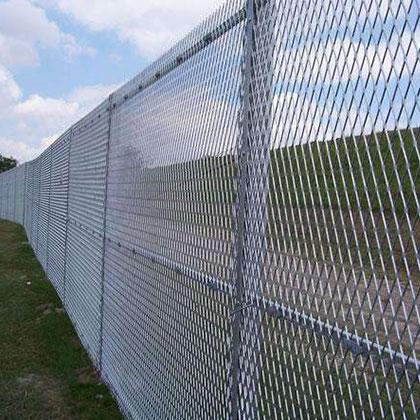

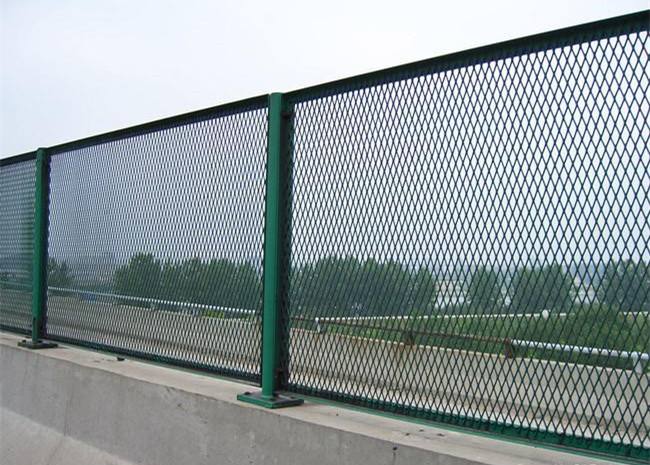

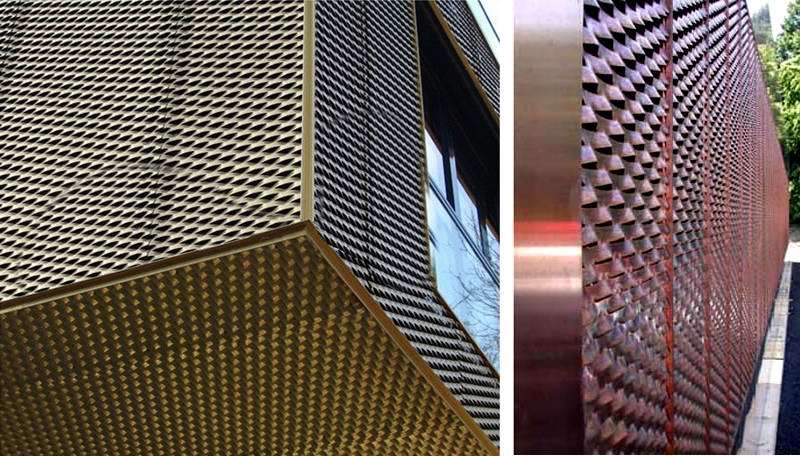

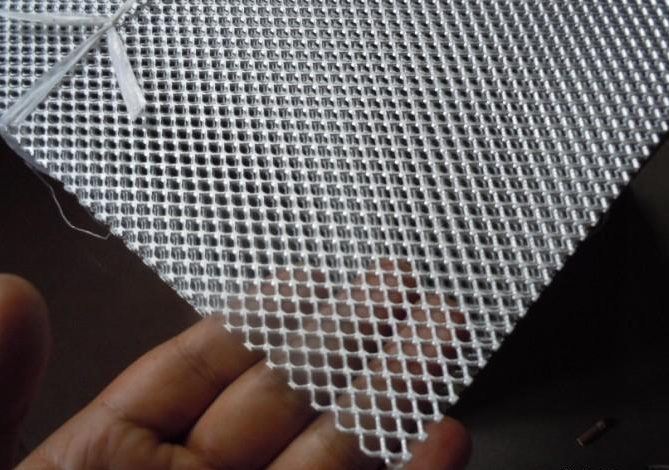

Expanded metal mesh is widely used in highway, railway, civil building, water conservancy construction, such as all kinds of machinery, electrical appliances, window protection and aquaculture and so on. Can be customized according to customer request processing all kinds of special specifications of products.
Material:
Low carbon steel plate/Aluminum plate/Stainless steel plate/Magaluma plate
Specifications
| Thickness(mm) | SWD(mm) | LWD(mm) | Strand(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 30 | 60 | 2.6 | 2 | 3.6 | 2.77 |
