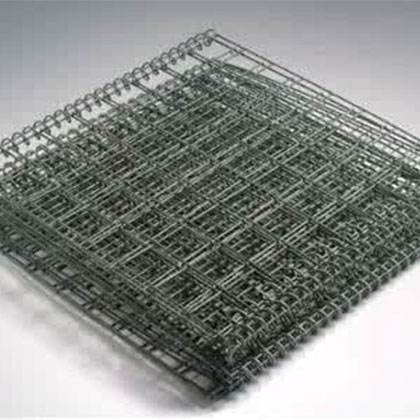

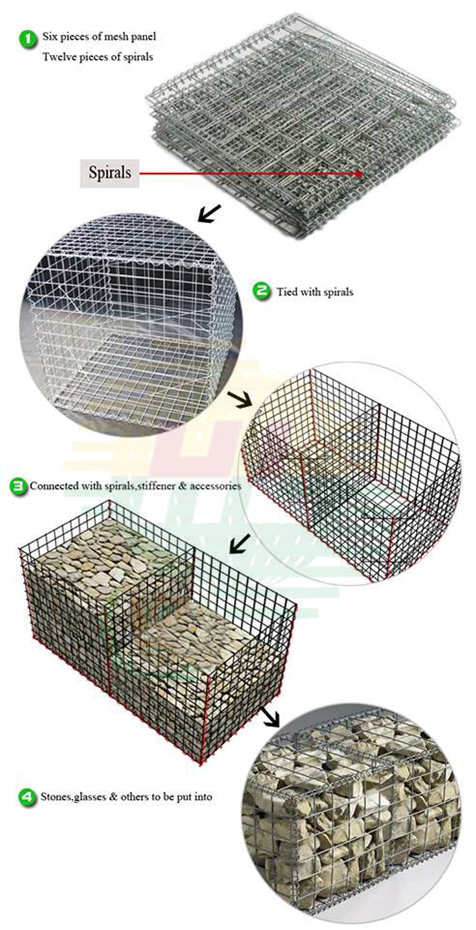

Our welded gabions are made from electric welded mesh panels connected by spirals/helicals or by C-lips, C-rings assembled with spacers/stiffeners. Also diaphragm and lacing wire are needed for some gabions.

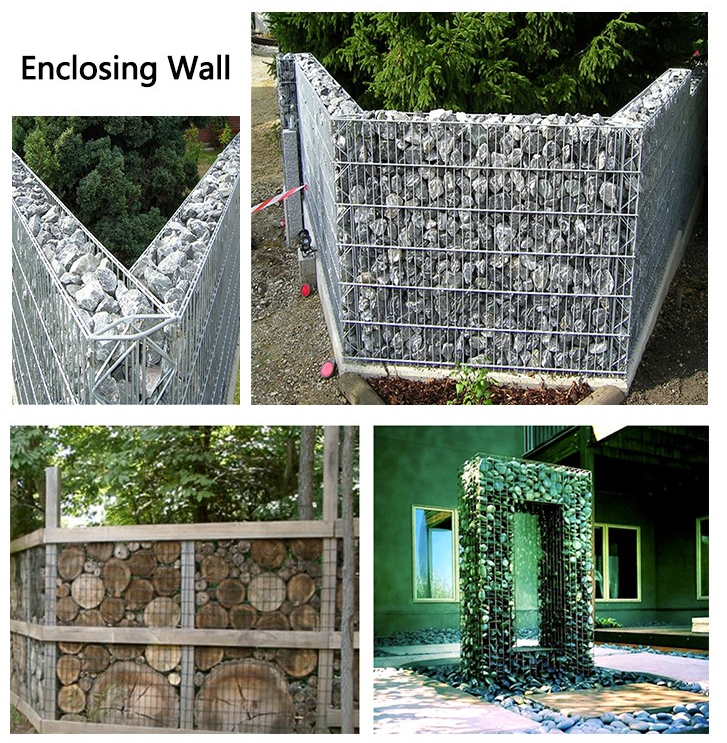

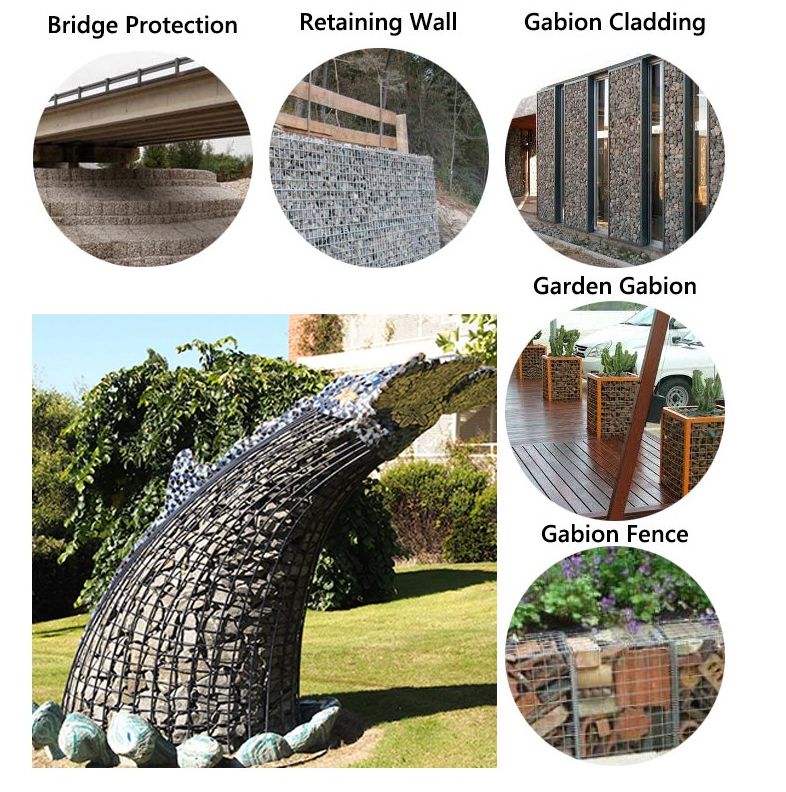

welded gabions are wild used in retaining walls, water and soil conservation, coastal and river bed protection construction, land demarcation, decorative landscaping, noise barrier, etc.
Our normal gabion length is 2.0m, 1.5m, 1.0m, 0.5m, gabion width is 1.0m, 0.5m, 0.3m and gabion height is 1.0m, 0.5m, 0.3m. They are standard size such as 2.0 x 1.0 x 1.0m, 2.0 x 1.0 x 0.5m, 2.0 x 0.3 x 0.3m, 1.0 x 0.5 x 0.5m, 0.5 x 0.5 x 0.5m, etc. Required size are available.
Mesh size: 25 x 25mm, 50 x 50mm, 100 x 50mm, 100 x 100mm and 3′ x 3′.
Mesh panels size are normal 500 x 500mm, 1000 x 500mm, 1000 x 1000mm, 2000 x 500mm, 2000 x 1000mm, 2000 x 300mm, 1000 x 300mm. Other panel size is available according to required gabions size.
The wire is from 3.0mm to 6.0mm
